Stainless steel conveyors chain with extend pin
- group name
- Conveyor chains
- Min Order
- 1 meter
- brand name
- zmie
- update time
- Tue, 02 Jul 2019 10:55:07 GMT
Packging & Delivery
-
Min Order1 meter
Briefing

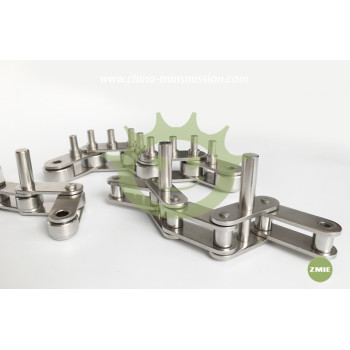

Stainless steel conveyor chain with extend pins
Detailed
Stainless steel conveyor chain with extend pins
| ZMIE Chain No. | P | b1 | d2 | L3 | L | Lc | |
| mm | mm | mm | mm | mm | mm | ||
| C208A-SS | C2040SS | 25.40 | 7.85 | 3.96 | 9.50 | 25.10 | 26.20 |
| C208AL-SS | C2042SS | ||||||
| C210ASS | 2050SS | 31.75 | 9.40 | 5.08 | 11.90 | 31.30 | 33.10 |
| C210ALSS | C2052SS | ||||||
| C212A-SS | C2060SS | 38.10 | 12.57 | 5.94 | 14.30 | 38.60 | 40.60 |
| C212AL-SS | C2062SS | ||||||
| C212AH-SS | C2060HSS | 38.10 | 12.57 | 5.94 | 14.30 | 42.00 | 43.80 |
| C212AHL-SS | C2062HSS | ||||||
| C216A-SS | C2080SS | 50.80 | 15.75 | 7.92 | 19.10 | 50.30 | 53.30 |
| C216AL-SS | C2082SS | ||||||
| C216AH-SS | C2080HSS | 50.80 | 15.75 | 7.92 | 19.10 | 53.50 | 55.00 |
| C216AHL-SS | C2082HSS | ||||||
| C220A-SS | C2100SS | 63.50 | 18.90 | 9.53 | 23.80 | 61.80 | 66.10 |
| C220AL-SS | C2102SS | ||||||
| C220AH-SS | C2100HSS | 63.50 | 18.90 | 9.53 | 23.80 | 65.00 | 68.30 |
| C220AHL-SS | C2102HSS | ||||||
| C224AH-SS | C2120HSS | 76.20 | 25.22 | 11.10 | 28.60 | 79.60 | 83.60 |
| C224AHL-SS | C2122HSS | ||||||
| C232AH-SS | C2160HSS | 101.60 | 31.75 | 14.27 | 38.10 | 103.00 | 107.80 |
| C232AHL-SS | C2162HSS | ||||||
